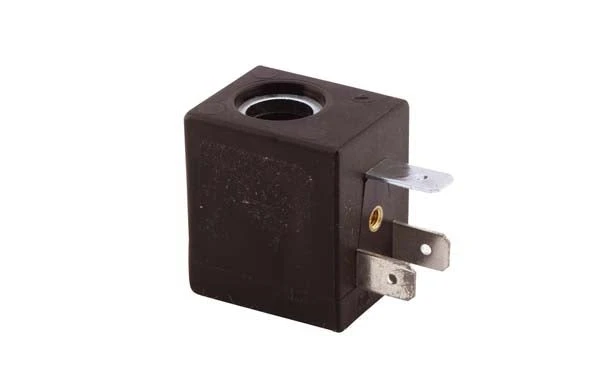

Coil, 230volt E3 For Solenoid Valve

Coil, 230volt E3 for Solenoid Valve

Voltage: 240V 50/60Hz
Power Consumption: 8VA
Insulation class: F
Duty Cycle:100%
Supplied without Connector: requires

CNE Small

The Series 3 solenoid coils from ACL are designed for use with ACL’s

105

,

305

,

107

 and

207

 (up to 1″ BSP) brass solenoid valves and their stainless steel counterparts.

These coils are fully over moulded with Fibre-glass Nylon which also encapsulates the zinc-plated steel magnetic flux bracket. The coil is secured to the solenoid valve by a central nut (supplied with valve).

Electrical connection according to DIN 43650 A. This coil matched the Beta Valve connector code

CNE Small.
